Description
Model Information

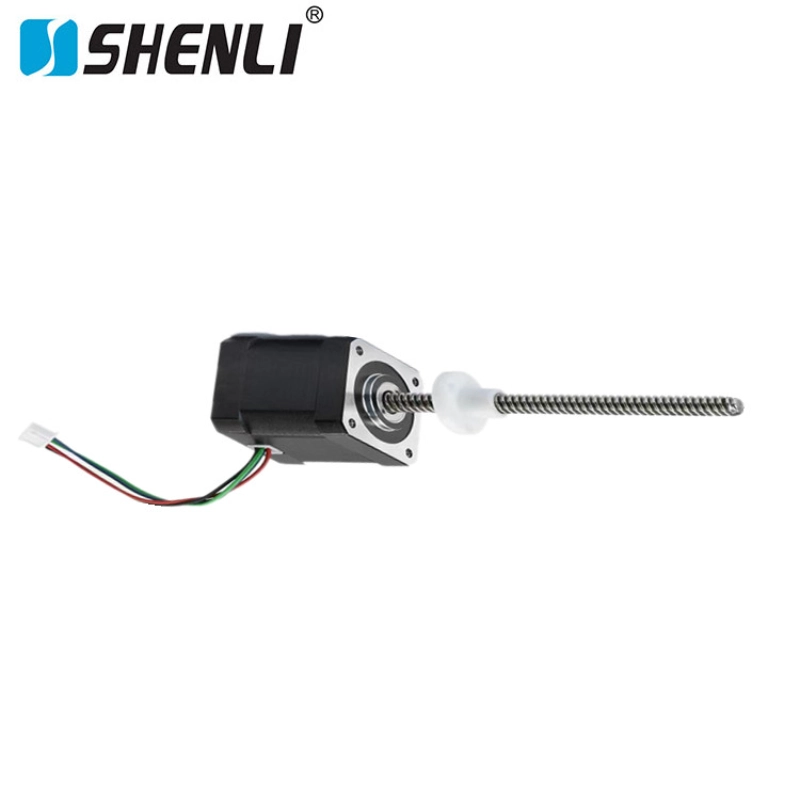

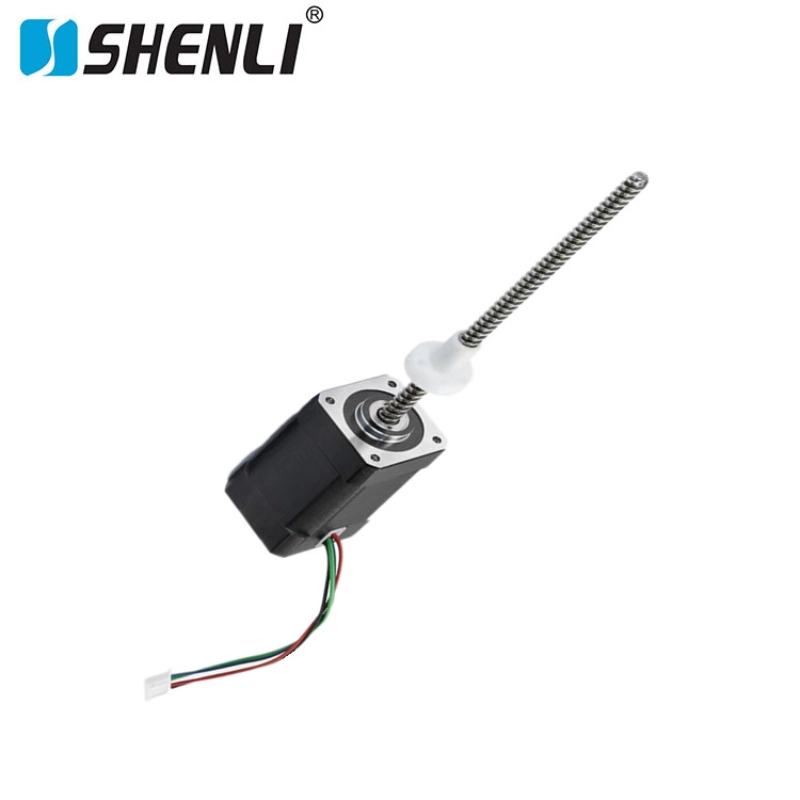

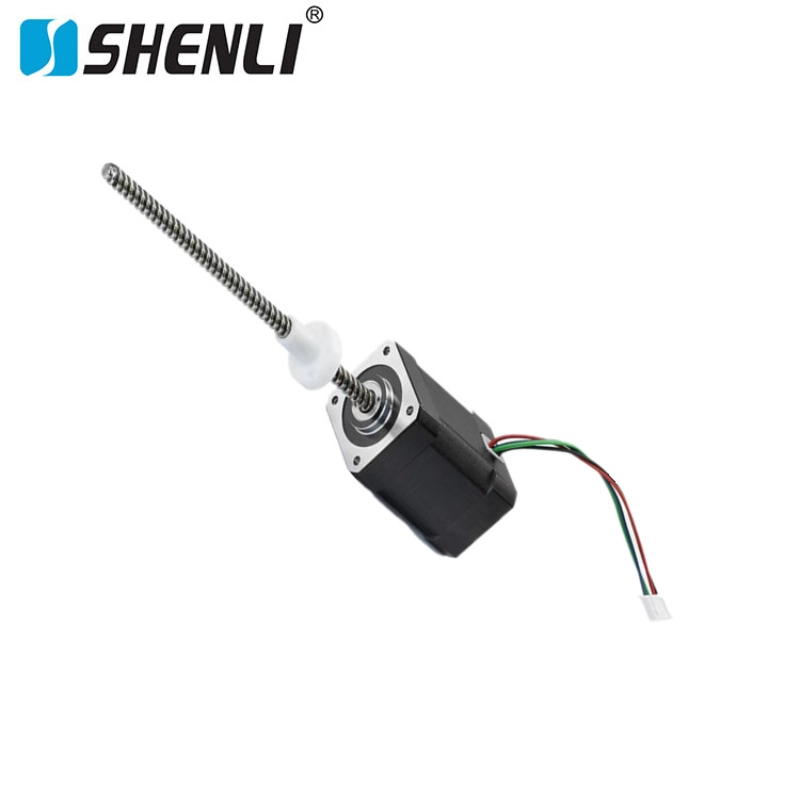

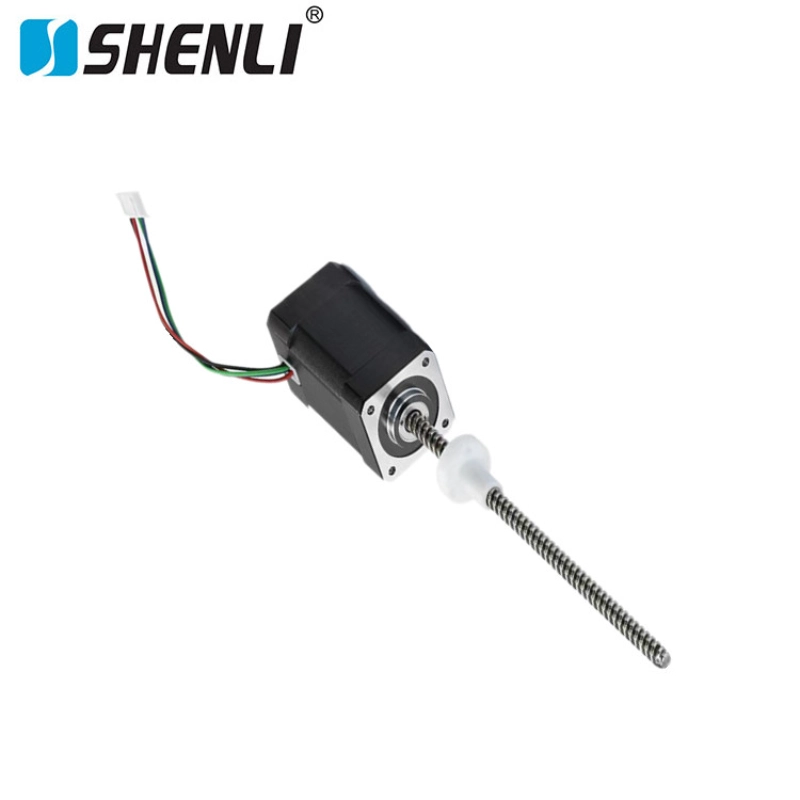

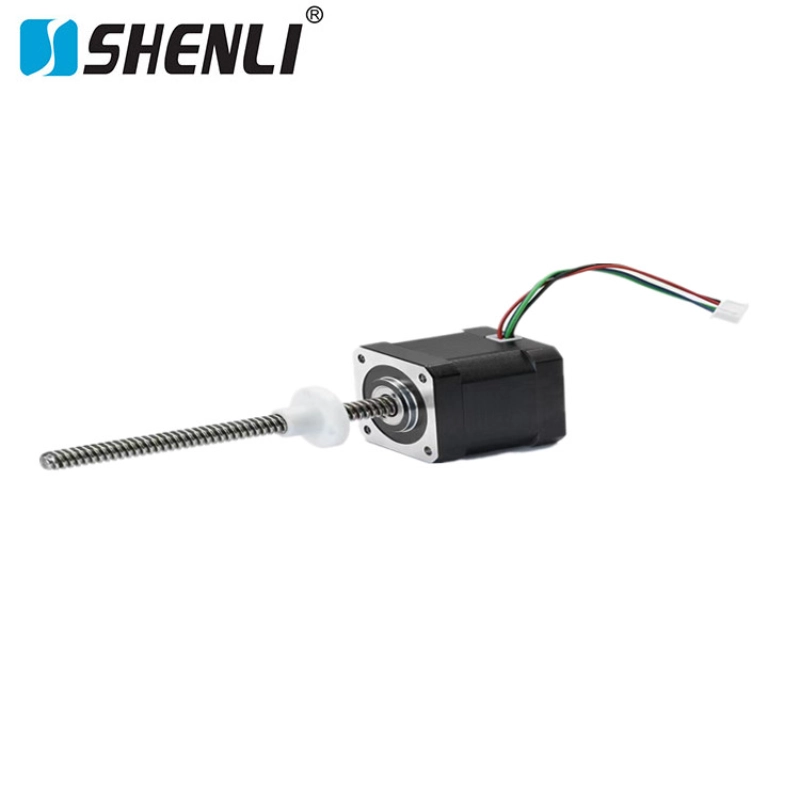

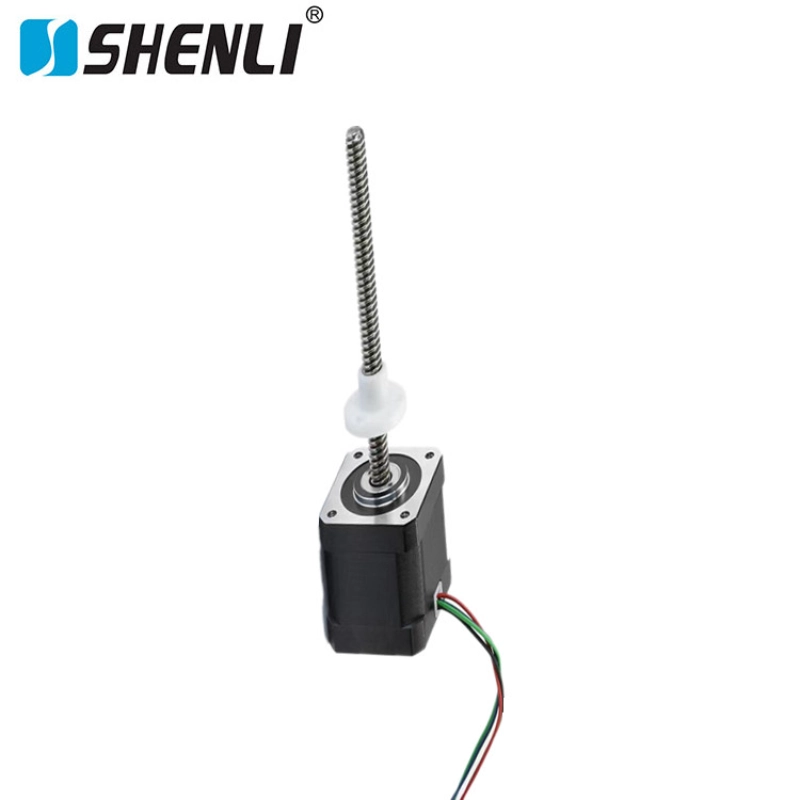

Model: Nema11 Lead Screw Stepper Motor

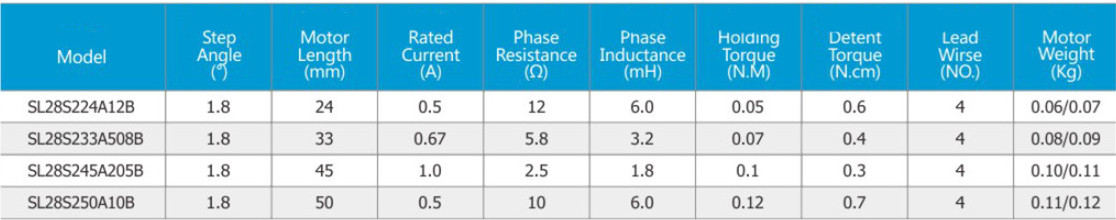

Basic Motor Parameters
Step Angle: 1.8° (supports microstepping for higher precision)
Flange Size: 28 × 28 mm

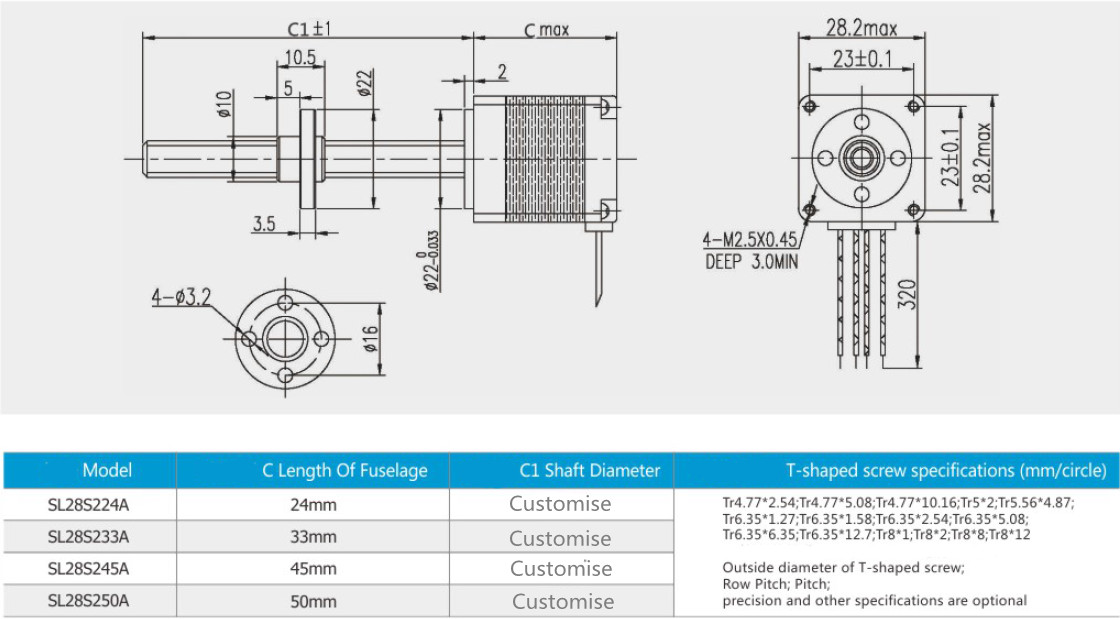

Motor Length: 28 – 50 mm (depends on screw length and configuration)
Winding: High-purity copper wire
Core Structure: Laminated silicon steel rotor & stator for improved efficiency
Lead Screw Specifications
Screw Type: Trapezoidal screw / Ball screw (optional)
Screw Diameter: 3 mm
Screw Pitch: 2 mm / 4 mm / 6 mm (customizable)
Screw Length Options: 20 / 30 / 40 / 50 / 75 / 100 mm (custom lengths available)
Max Stroke: Up to 100 mm (or customized longer travel)
Electrical Parameters
Rated Voltage: 12V DC / 24V DC
Drive Current: 0.5 – 1.2 A

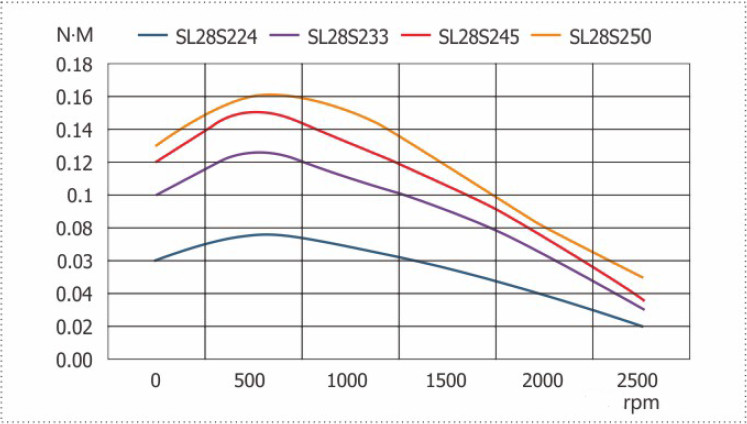

Motion Performance
No-load Linear Speed: 5 – 150 mm/s (depends on pitch & drive mode)
Max Thrust Output:
2 mm pitch: ~30 N
4 mm pitch: ~40 N
6 mm pitch: ~50 N
Operation Features: Low noise, low vibration, high repeat positioning accuracy, continuous duty capable
Mechanical Structure
Bearings: High-precision ball bearings
Lubrication: Long-life lubrication system
Friction Design: Reduced wear for extended lifespan
Max Travel: Depends on screw length (standard up to 100 mm)
Control & Drive
Drive Mode: Open-loop stepper / Optional closed-loop with encoder
Microstepping Support: Yes
Precision Control: High-resolution linear positioning capability
Environmental Conditions
Operating Temperature: -20°C ~ 50°C
Insulation Class: Class B
Service Life: ≥10,000 hours continuous operation
Typical Applications
3D printers
Laser engraving machines
Micro robotics
Laboratory automation equipment
Medical devices
Packaging machinery
Miniature conveyor systems
Optical positioning systems
Product Overview
The Nema11 lead screw stepper motor integrates a compact linear motion system into a small motor body. It converts rotary motion into precise linear movement, providing stable thrust, low noise, and high positioning accuracy, making it ideal for compact automation and precision control applications.
